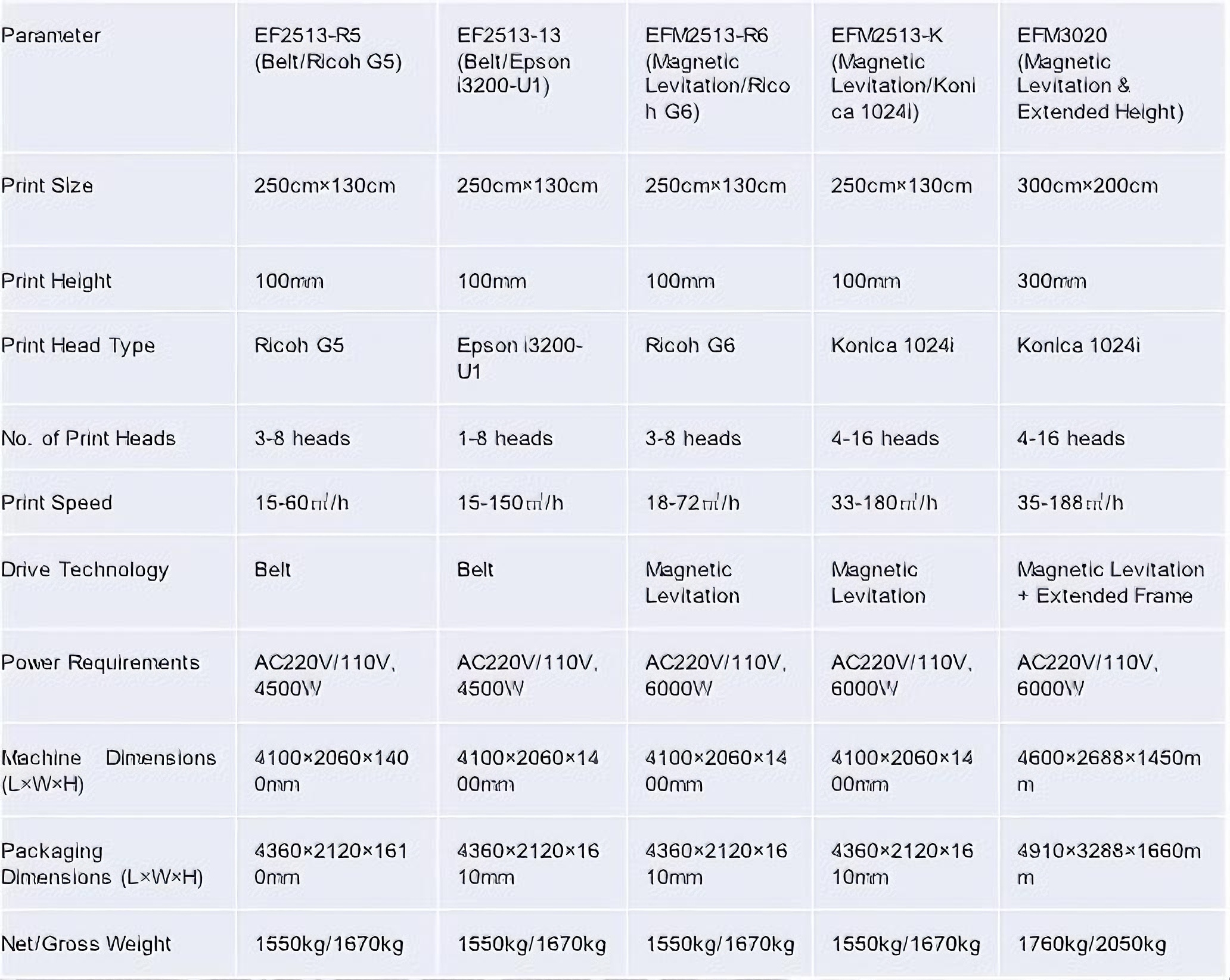

Specifications
Product features:
- Equip with 3-16 pcs Ricoh G5/ Ricoh G6/ Konica 1024i and other industrial grade high-precision & high-speed printhead;
- Imported THK silent linear guide rail and slider, imported screw and servo motor;
- Automatic high precision height measuring device, sprinkler head bilateral anti-collision device;
- One-button automatic positioning function, when printing large size plate, it is more convenient and easy to operate by one person;
- 45 printing platform support points, when using bidirectional mode printing small products, the pattern accuracy is consistent;
- High power electrostatic eliminator, effectively eliminate static electricity on the medium, eliminate static electricity caused by flying ink, pattern is not clear phenomenon;
- sprinkler head automatic flash spraying function, in standby state, the nozzle will be 2 hours interval automatic micro flash spraying once, to avoid the nozzle drying;
- Secondary cartridge constant temperature heating function, white ink inner circulation function, prevent white ink precipitation, improve ink fluency, reduce the probability of plugging;
- Automatic ink channel valve switch, power off automatically close the ink channel, prevent air from entering from the nozzle, without manual, convenient and fast;
- 3~4.5KW high power strong turbine suction fan, equipped with silencer, really achieve the perfect effect of strong force and low sound.
Core Features & Advantages 1.Wide Material Compatibility Supports printing on: acrylic, metal, glass, wood, ceramic, leather, textiles, PVC/PE/PC sheets, and other rigid/flexible materialSpecial applications: 3D textured printing (e.g., embossed signs, decorative art). 2.Key Technologies Magnetic Levitation Models (EFM Series): Zero-friction drive, no deviation over long-term use, ideal for high-precision orders Konica 1024i Print Head: Industrial-grade durability, supports 16-head parallel printing, boosting mass production efficiency by 300%. 300mm Extended Height (EFM3020): Can directly print thick boards, furniture, doors, and other large items. 3.Speed & Precision Ricoh G6 model: Maintains 1200dpi precision even at 72㎡/h Epson i3200 model: Ideal for high-detail patterns (e.g., art reproductions).
