Machine parameters

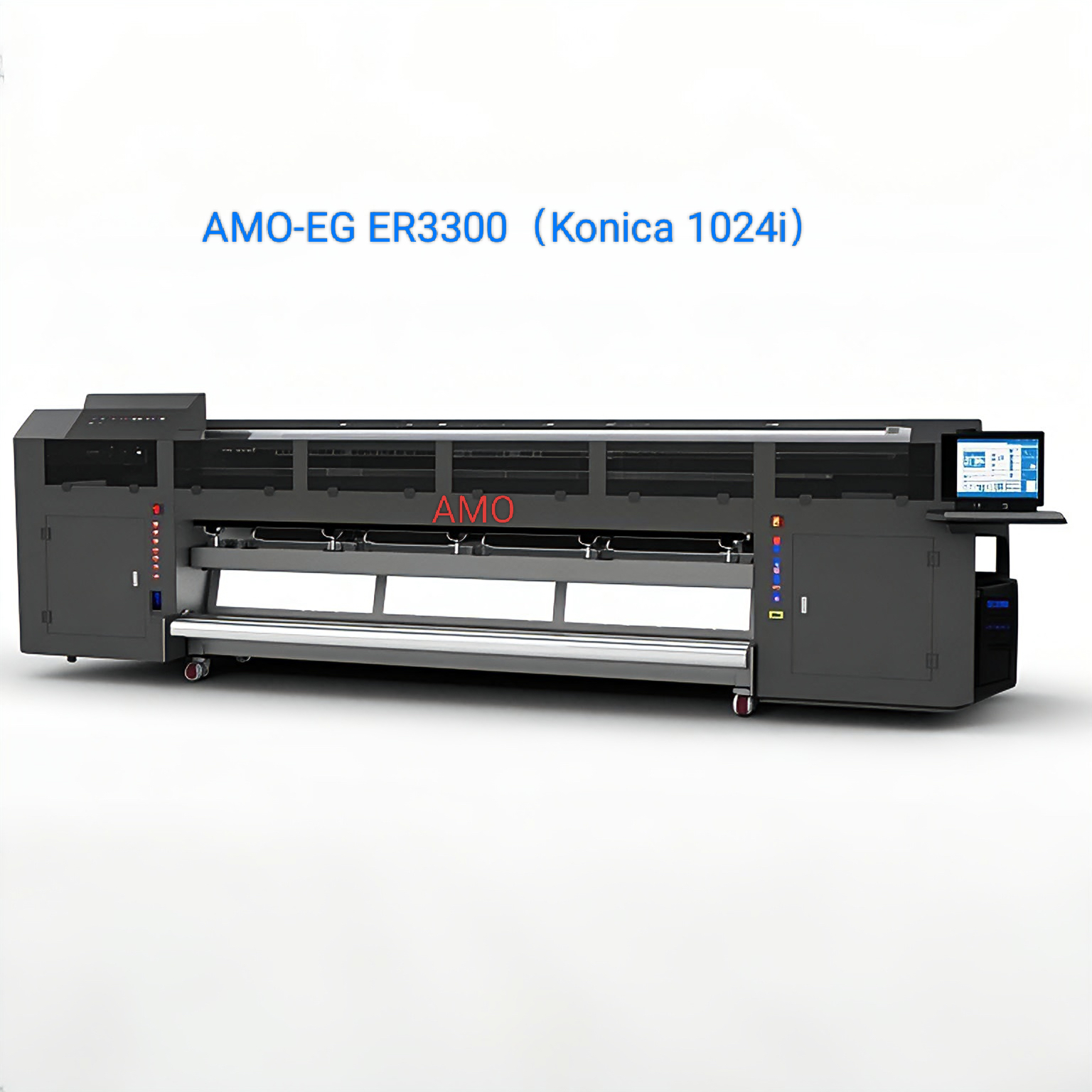

Printer model: AMO-EG UV Flat bed &roll Printer ER3300
Printhead: konica 1024i/Ricoh G6(4-12 PCS)
Print Width:3200MM
Printing speed of three row printerheads
External light mode 6pass-3pass
Konica 1024i:48-132m2/h
Ricoh G6 45-84m2/h
Internal light mode 6pass-4pass
Konica 1024i:48-99m2/h
Ricoh G6 45-63m2/h
MEDIA TYPE:Can print any soft materials: ceiling soft film, leather, wall paper/ cloth, Polyester Cloth, Back-lit film, Vinyl, Photo paper, Canva etc.
RIP software:Dutch pf color management software
working voltage: AC220V 50/60HZ
Power:4500W
working environment: Normal working temperature:22-28℃humidity:40%-60%
Machine size :L5300MM W1180MM H1700MM
Packing dimensions:5600MM(L)1250MM(W)2100MM(H)
NET/GROSS WEIGHT:2500KG/2800KG
Product features：
1.The effective printing width is 3.2m and the printing thickness is 10mm; lt can be equipped with 4-16 Ricoh G5/ Ricoh G6/ Konica 1024i industrial-grade high-speed sprinklers, supporting grayscale printing;
2.Industrial-grade heavy beam and frame, the original intelligent and efficient water-cooled printing platform, reduce the temperature of printing medium;
3.Double row imported high precision, silent linear guide rail, greatly reduce the working noise;
4.Double power four large diameter cots + air expansion shaft/electromagnetic clutch(optional) more effectively ensure high speed jump, the material does not deviate;
5.High power electrostatic elimination device, effectively prevent flying ink, font blur, cloth scraps stick to the nozzle phenomenon;
6.Moving material tension adjustment and intelligent compensation function;
7.Color pressing ink device, automatic solenoid control ink road switch valve, to prevent the shutdown of the ink road is not closed, resulting in air into the printhead;
8.Printhead automatic flash spray function, to prevent the shutdown is too long, the printhead hole dry plug;
9.Printhead 3nd ink line constant temperature heating system, effectively prevent the winter ink supply is not smooth problem
