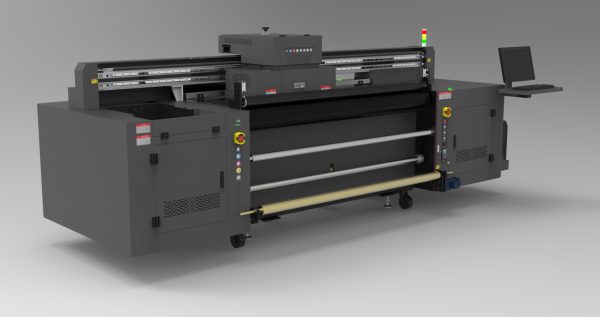

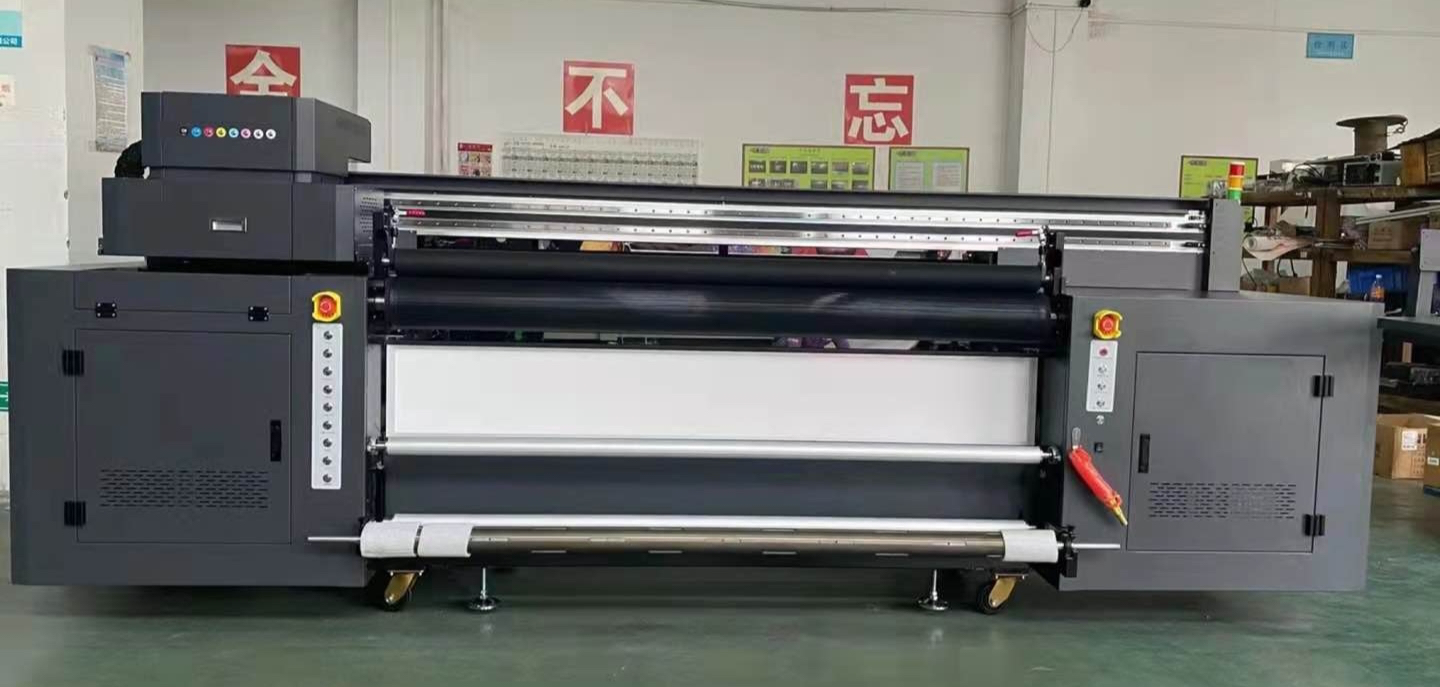

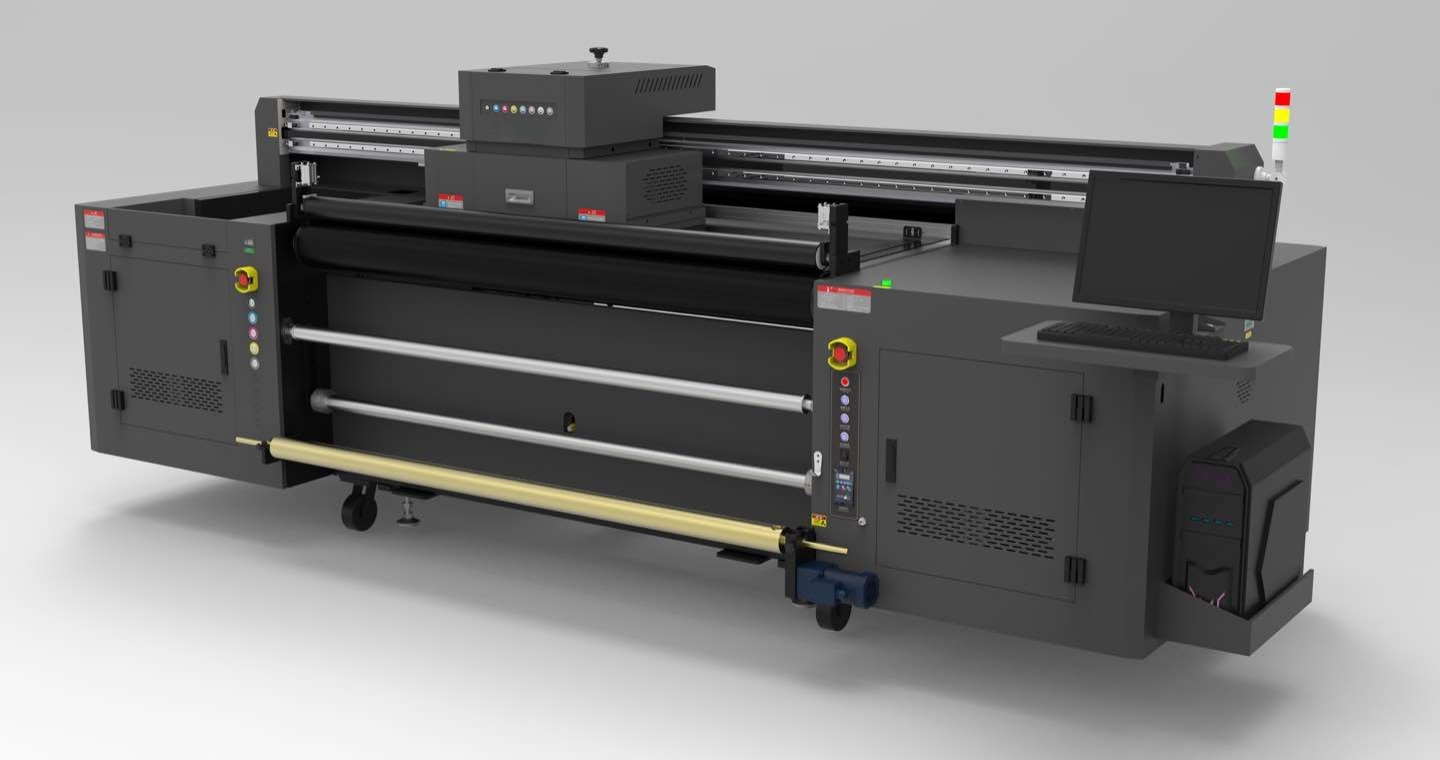

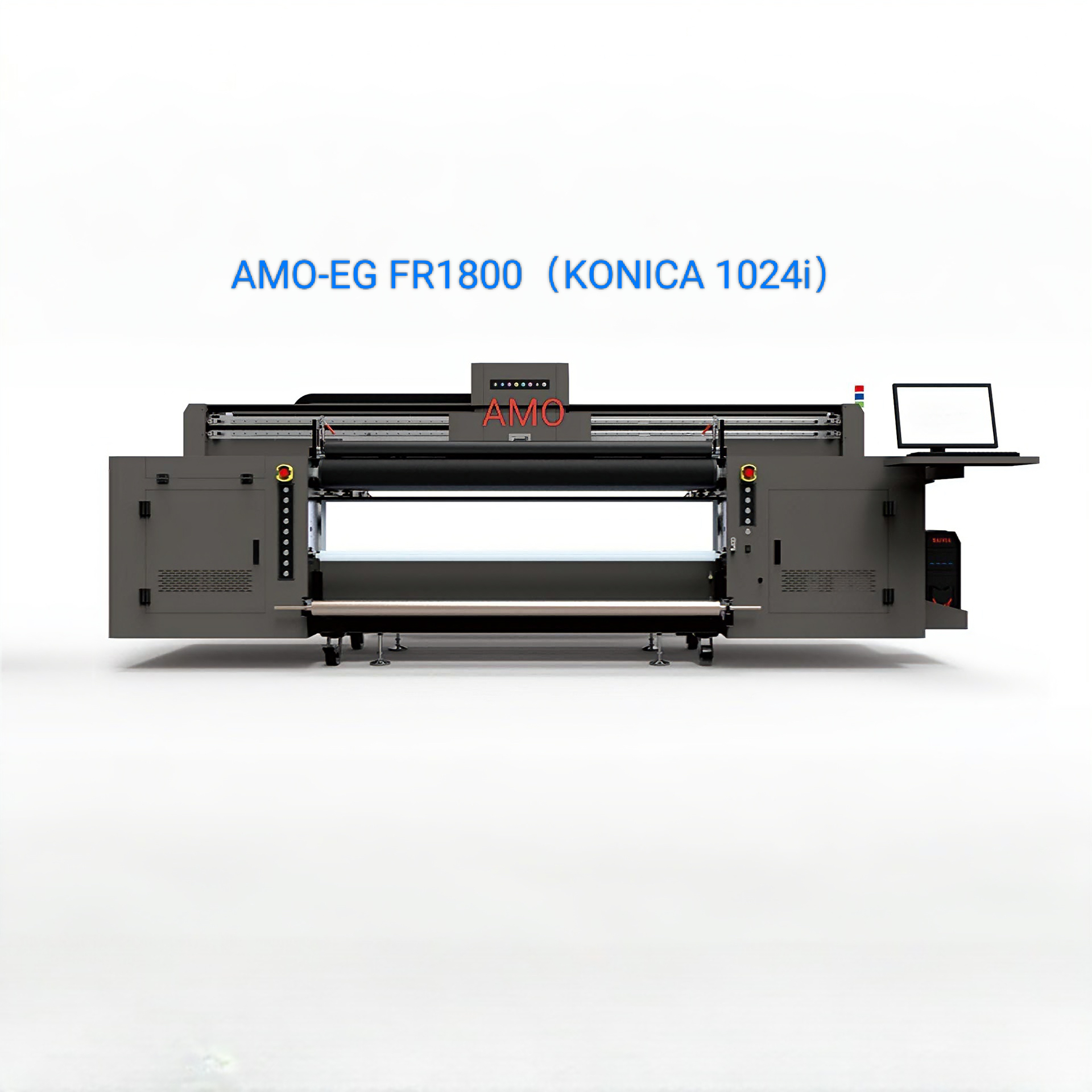

AMO-EG UV Flat bed &roll Printer FR 1800(KONICA 1024i)

描述

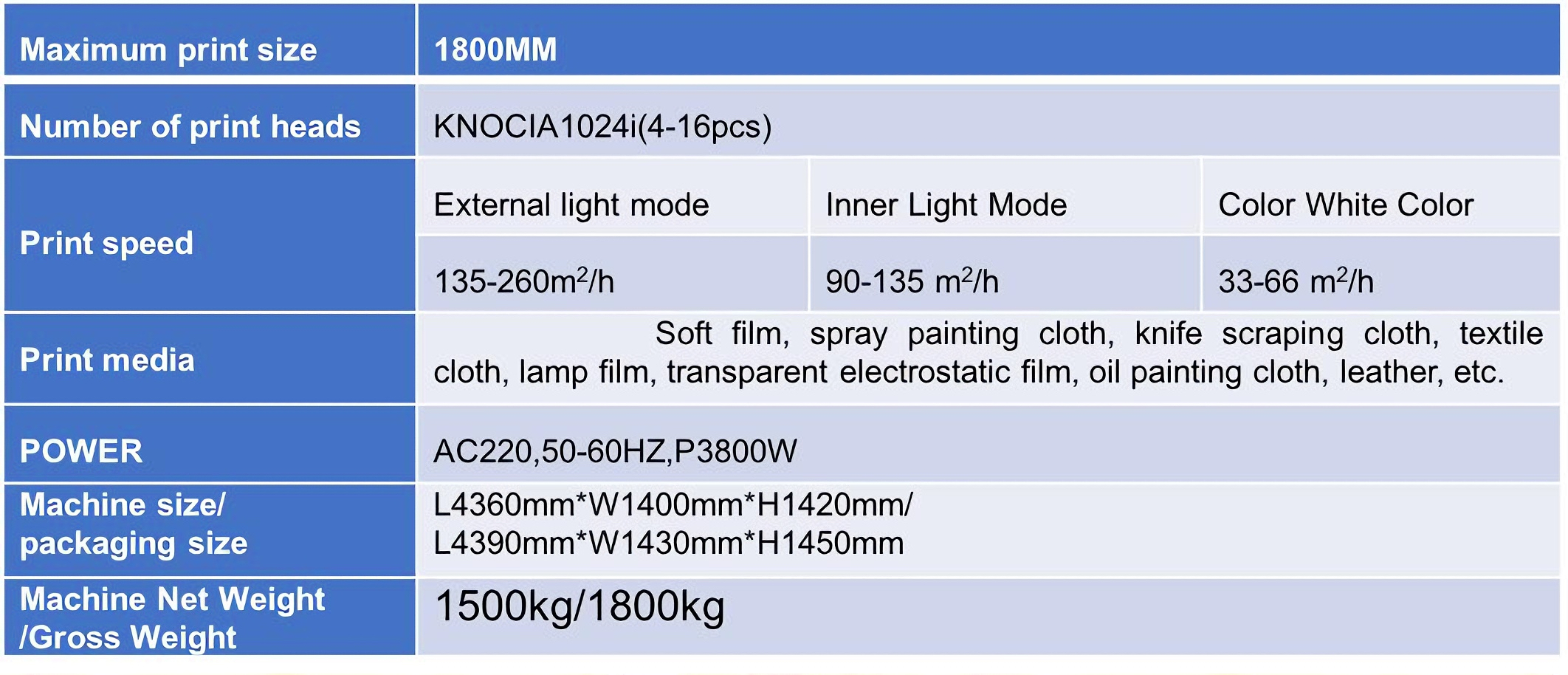

Specifications：

Machine parameters

  Printer model: AMO-EG UV Flat bed &roll Printer FR1800

  Printhead: konica 1024i

  Print Width:1800MM

  Printing speed of three row printerheads

Printing speed of Four row printerheads

  External light mode :135-260m²/h

  Internal light mode :90-135m²/h

C+W+C mode :33-66m²/h

  MEDIA TYPE:Soft film/printing cloth/knife scraping cloth/lamp piece/transparent electrostatic film/canvas/leather/textile material (almost any soft material)

  RIP  software:Dutch pf color management software

  working voltage: AC220V 50/60HZ

  Power:3800W

  working environment: Normal working temperature:22-28℃humidity:40%-60%

  Machine size :L4260MM    W11750MM    H1650MM

  Packing dimensions:4310MM(L)1800MM(W)1700MM(H)

  NET/GROSS WEIGHT:1500KG/1800KG



1.Printing width of 1.8 meters, equipped with Konica 1024i high-speed printhead, variable ink drop technology;

2.Imported dual linear high-precision guide rails & sliders + dual servo AC motors;

3. Imported color management software, printhead aging color compensation function, ink saving/intelligent typesetting function, higher color restoration (four-color restoration of pure “gold/silver”);

4.Patented high-sensitivity printhead anti-collision system; Korean imported LED water-cooled UV curing lamp;

5.Double inflatable shaft + double tension floating rod front and rear retracting system, high-speed material feeding without deviation or wrinkling, higher stepping accuracy;

6.Standard high-power static eliminator, effectively eliminates problems such as flying ink and blurring caused by static electricity of materials;

7. The printing platform has segmented independent adsorption and independent adjustment of adsorption size functions, and with a powerful silent turbo blower, it can adapt to the adsorption of various thick and thin materials and complex materials.
